RabbitMq模式

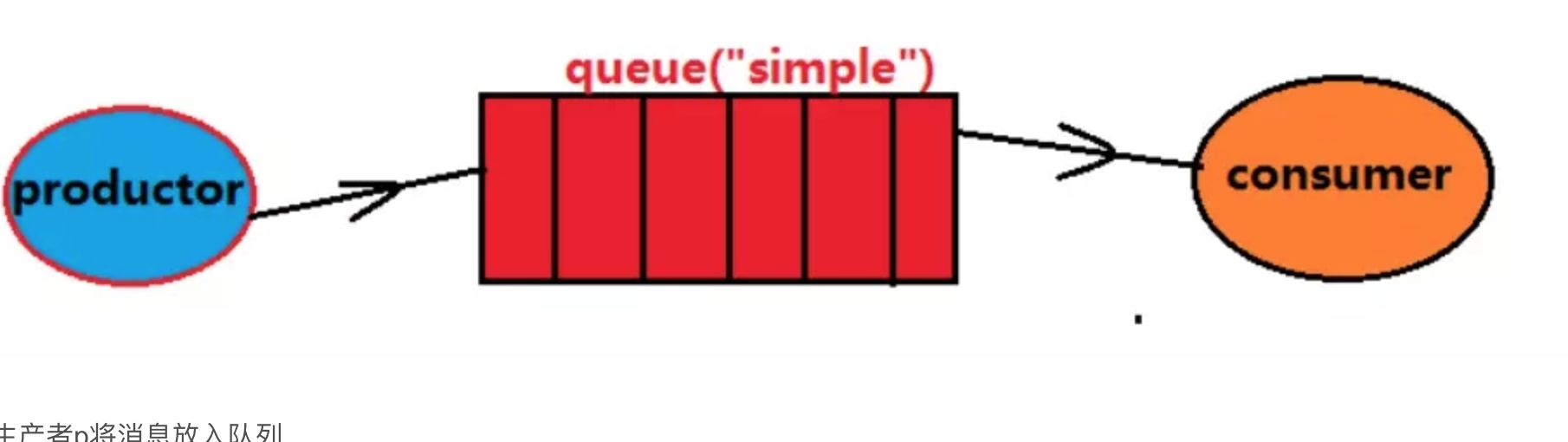

简单模式

一个生产者P发送消息到队列Q,一个消费者C接收

https://java-run-blog.oss-cn-zhangjiakou.aliyuncs.com/blog/u=3536793445,2882105203&fm=26&gp=0.gif

public class Send {

    private final static String QUEUE_NAME = "hello";

    public static void main(String[] argv) throws Exception {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        try (Connection connection = factory.newConnection();
             Channel channel = connection.createChannel()) {
            channel.queueDeclare(QUEUE_NAME, false, false, false, null);
            String message = "Hello World!";
            channel.basicPublish("", QUEUE_NAME, null, message.getBytes(StandardCharsets.UTF_8));
            System.out.println(" [x] Sent '" + message + "'");
        }
    }
}

public class Recv {

  private final static String QUEUE_NAME = "hello";

  public static void main(String[] argv) throws Exception {
    ConnectionFactory factory = new ConnectionFactory();
    factory.setHost("localhost");
    Connection connection = factory.newConnection();
    Channel channel = connection.createChannel();
    channel.queueDeclare(QUEUE_NAME, false, false, false, null);
    System.out.println(" [*] Waiting for messages. To exit press CTRL+C");

  }
}

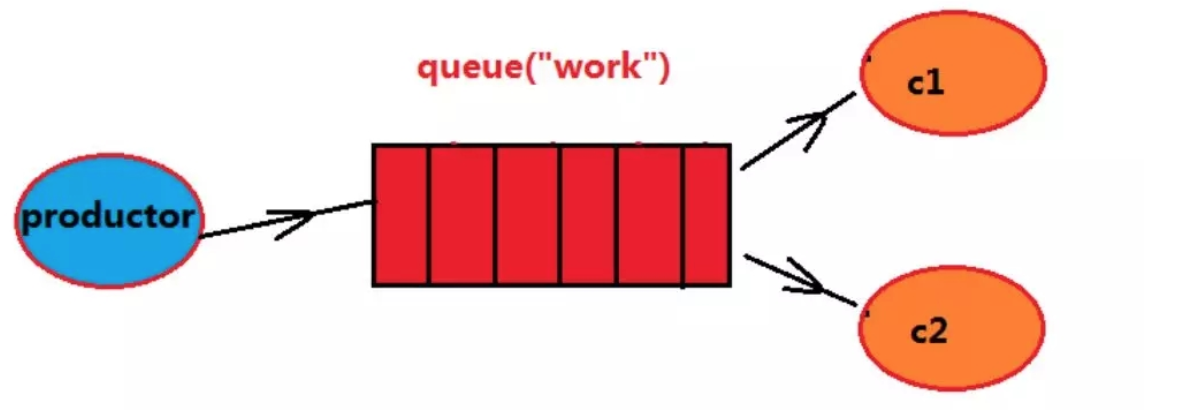

工作队列模式Work Queue

public class NewTask {
  private static final String TASK_QUEUE_NAME = "task_queue";
  public static void main(String[] argv) throws Exception {
    ConnectionFactory factory = new ConnectionFactory();
    factory.setHost("localhost");
    try (Connection connection = factory.newConnection();
         Channel channel = connection.createChannel()) {
        channel.queueDeclare(TASK_QUEUE_NAME, true, false, false, null);

        String message = String.join(" ", argv);

        channel.basicPublish("", TASK_QUEUE_NAME,
                MessageProperties.PERSISTENT_TEXT_PLAIN,
                message.getBytes("UTF-8"));
        System.out.println(" [x] Sent '" + message + "'");
    }
  }
}

public class Recv {
    private static final String TASK_QUEUE_NAME = "task_queue";
    public static void main(String[] argv) throws Exception {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setUsername("guest");
        factory.setPassword("guest");
        Connection connection = factory.newConnection();
        Channel channel = connection.createChannel();
        DeliverCallback deliverCallback = (consumerTag, delivery) -> {
            String message = new String(delivery.getBody(), "UTF-8");
            System.out.println(" [x] Received '" + message + "'");
            try {
                doWork(message);
            } catch (InterruptedException e) {
                e.printStackTrace();
            } finally {
                System.out.println(" [x] Done");
            }
        };
        boolean autoAck = true; // acknowledgment is covered below
        channel.basicConsume(TASK_QUEUE_NAME, autoAck, deliverCallback, consumerTag -> { });

    }
    private static void doWork(String task) throws InterruptedException {
        for (char ch: task.toCharArray()) {
            if (ch == '.') Thread.sleep(1000);
        }
    }
}

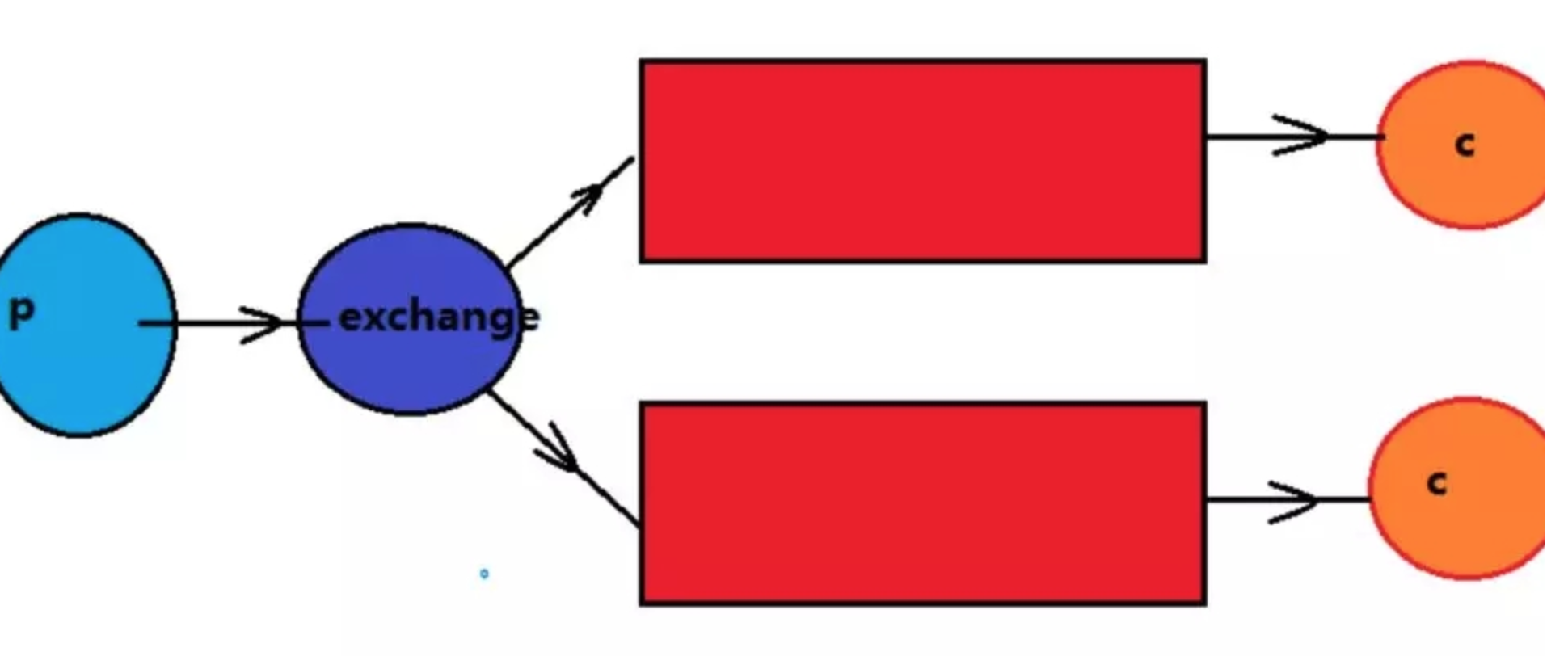

发布/订阅模式Publish/Subscribe

功能：一个生产者发送的消息会被多个消费者获取。一个生产者、一个交换机、多个队列、多个消费者

生产者：可以将消息发送到队列或者是交换机。

消费者：只能从队列中获取消息。

如果消息发送到没有队列绑定的交换机上，那么消息将丢失。
交换机不能存储消息，消息存储在队列中

public class EmitLog {

  private static final String EXCHANGE_NAME = "logs";

  public static void main(String[] argv) throws Exception {
    ConnectionFactory factory = new ConnectionFactory();
    factory.setHost("localhost");
    try (Connection connection = factory.newConnection();
         Channel channel = connection.createChannel()) {
        channel.exchangeDeclare(EXCHANGE_NAME, "fanout");

        String message = argv.length < 1 ? "info: Hello World!" :
                            String.join(" ", argv);

        channel.basicPublish(EXCHANGE_NAME, "", null, message.getBytes("UTF-8"));
        System.out.println(" [x] Sent '" + message + "'");
    }
  }
}

public class ReceiveLogs {
  private static final String EXCHANGE_NAME = "logs";

  public static void main(String[] argv) throws Exception {
    ConnectionFactory factory = new ConnectionFactory();
    factory.setHost("localhost");
    Connection connection = factory.newConnection();
    Channel channel = connection.createChannel();

    channel.exchangeDeclare(EXCHANGE_NAME, "fanout");
    String queueName = channel.queueDeclare().getQueue();
    channel.queueBind(queueName, EXCHANGE_NAME, "");

    System.out.println(" [*] Waiting for messages. To exit press CTRL+C");

    DeliverCallback deliverCallback = (consumerTag, delivery) -> {
        String message = new String(delivery.getBody(), "UTF-8");
        System.out.println(" [x] Received '" + message + "'");
    };
    channel.basicConsume(queueName, true, deliverCallback, consumerTag -> { });
  }
}

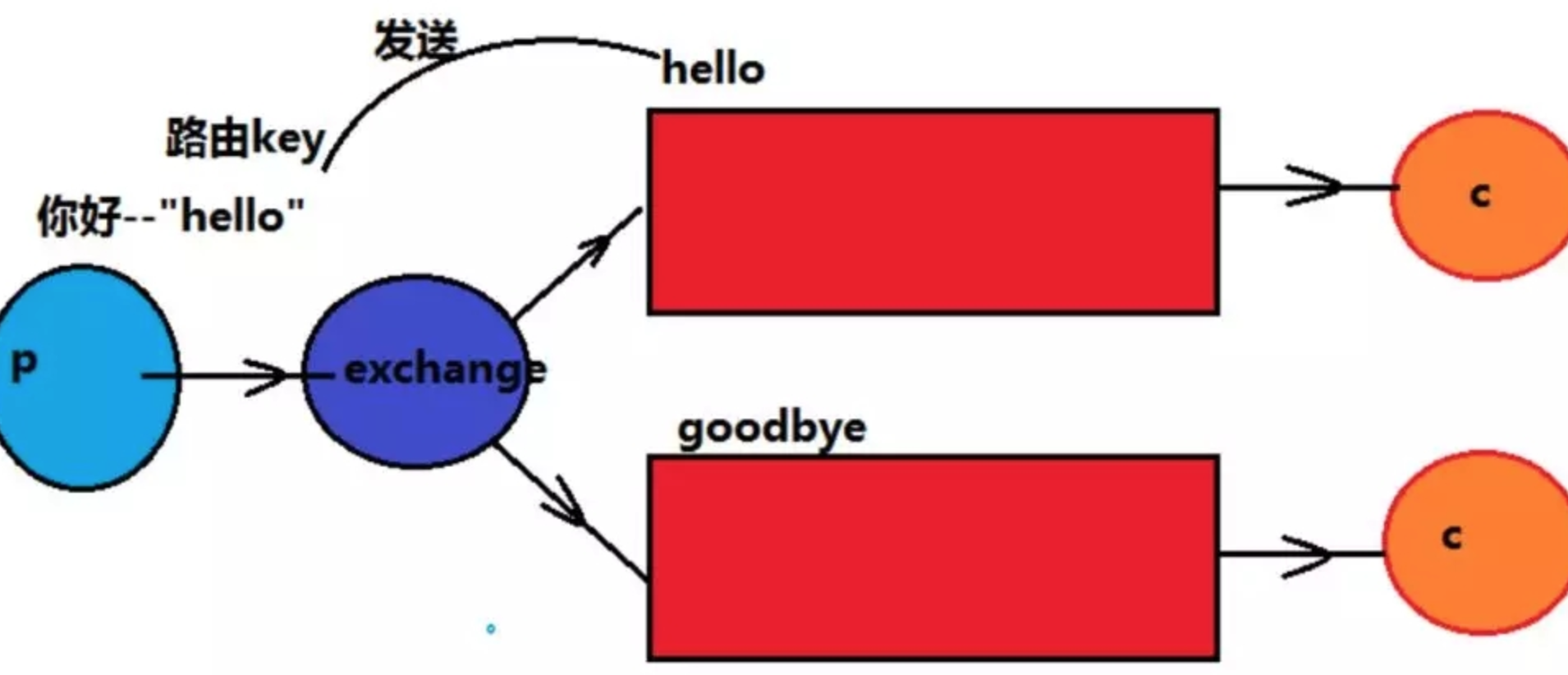

路由模式Routing

public class EmitLogDirect {

  private static final String EXCHANGE_NAME = "direct_logs";

  public static void main(String[] argv) throws Exception {
    ConnectionFactory factory = new ConnectionFactory();
    factory.setHost("localhost");
    try (Connection connection = factory.newConnection();
         Channel channel = connection.createChannel()) {
        channel.exchangeDeclare(EXCHANGE_NAME, "direct");

        String severity = getSeverity(argv);
        String message = getMessage(argv);

        channel.basicPublish(EXCHANGE_NAME, severity, null, message.getBytes("UTF-8"));
        System.out.println(" [x] Sent '" + severity + "':'" + message + "'");
    }
  }
    private static String getSeverity(String[] strings) {
        if (strings.length < 1)
            return "info";
        return strings[0];
    }

    private static String getMessage(String[] strings) {
        if (strings.length < 2)
            return "Hello World!";
        return joinStrings(strings, " ", 1);
    }

    private static String joinStrings(String[] strings, String delimiter, int startIndex) {
        int length = strings.length;
        if (length == 0) return "";
        if (length <= startIndex) return "";
        StringBuilder words = new StringBuilder(strings[startIndex]);
        for (int i = startIndex + 1; i < length; i++) {
            words.append(delimiter).append(strings[i]);
        }
        return words.toString();
    }
}

public class ReceiveLogsDirect {

  private static final String EXCHANGE_NAME = "direct_logs";

  public static void main(String[] argv) throws Exception {
    ConnectionFactory factory = new ConnectionFactory();
    factory.setHost("localhost");
    Connection connection = factory.newConnection();
    Channel channel = connection.createChannel();

    channel.exchangeDeclare(EXCHANGE_NAME, "direct");
    String queueName = channel.queueDeclare().getQueue();

    if (argv.length < 1) {
        System.err.println("Usage: ReceiveLogsDirect [info] [warning] [error]");
        System.exit(1);
    }

    for (String severity : argv) {
        channel.queueBind(queueName, EXCHANGE_NAME, severity);
    }
    System.out.println(" [*] Waiting for messages. To exit press CTRL+C");

    DeliverCallback deliverCallback = (consumerTag, delivery) -> {
        String message = new String(delivery.getBody(), "UTF-8");
        System.out.println(" [x] Received '" +
            delivery.getEnvelope().getRoutingKey() + "':'" + message + "'");
    };
    channel.basicConsume(queueName, true, deliverCallback, consumerTag -> { });
  }
}

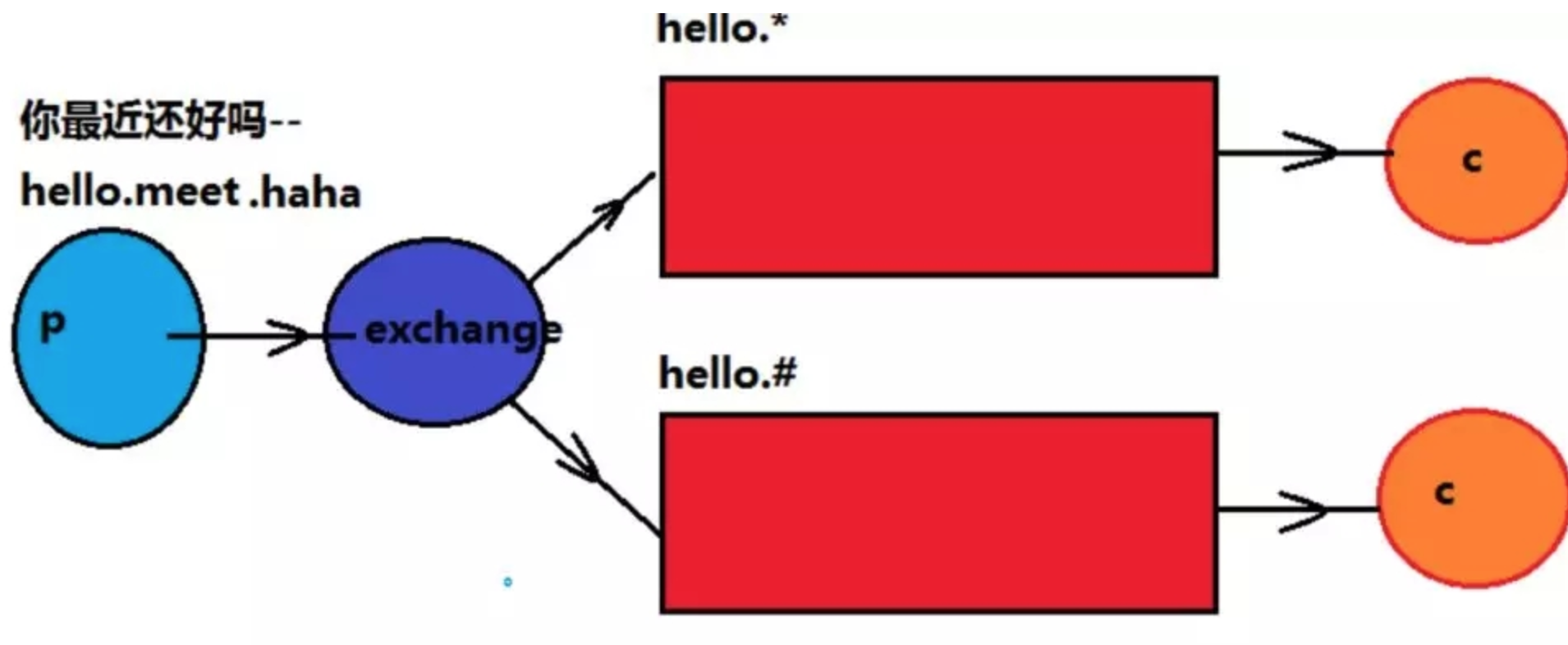

通配符模式Topics

生产者P发送消息到交换机X，type=topic，交换机根据绑定队列的routing key的值进行通配符匹配；
符号#：匹配一个或者多个词lazy.# 可以匹配lazy.irs或者lazy.irs.cor

public class EmitLogTopic {

  private static final String EXCHANGE_NAME = "topic_logs";

  public static void main(String[] argv) throws Exception {
    ConnectionFactory factory = new ConnectionFactory();
    factory.setHost("localhost");
    try (Connection connection = factory.newConnection();
         Channel channel = connection.createChannel()) {

        channel.exchangeDeclare(EXCHANGE_NAME, "topic");

        String routingKey = getRouting(argv);
        String message = getMessage(argv);

        channel.basicPublish(EXCHANGE_NAME, routingKey, null, message.getBytes("UTF-8"));
        System.out.println(" [x] Sent '" + routingKey + "':'" + message + "'");
    }
  }
   private static String getRouting(String[] strings) {
        if (strings.length < 1)
            return "anonymous.info";
        return strings[0];
    }

    private static String getMessage(String[] strings) {
        if (strings.length < 2)
            return "Hello World!";
        return joinStrings(strings, " ", 1);
    }

    private static String joinStrings(String[] strings, String delimiter, int startIndex) {
        int length = strings.length;
        if (length == 0) return "";
        if (length < startIndex) return "";
        StringBuilder words = new StringBuilder(strings[startIndex]);
        for (int i = startIndex + 1; i < length; i++) {
            words.append(delimiter).append(strings[i]);
        }
        return words.toString();
    }
}

public class ReceiveLogsTopic {

  private static final String EXCHANGE_NAME = "topic_logs";

  public static void main(String[] argv) throws Exception {
    ConnectionFactory factory = new ConnectionFactory();
    factory.setHost("localhost");
    Connection connection = factory.newConnection();
    Channel channel = connection.createChannel();

    channel.exchangeDeclare(EXCHANGE_NAME, "topic");
    String queueName = channel.queueDeclare().getQueue();

    if (argv.length < 1) {
        System.err.println("Usage: ReceiveLogsTopic [binding_key]...");
        System.exit(1);
    }

    for (String bindingKey : argv) {
        channel.queueBind(queueName, EXCHANGE_NAME, bindingKey);
    }

    System.out.println(" [*] Waiting for messages. To exit press CTRL+C");

    DeliverCallback deliverCallback = (consumerTag, delivery) -> {
        String message = new String(delivery.getBody(), "UTF-8");
        System.out.println(" [x] Received '" +
            delivery.getEnvelope().getRoutingKey() + "':'" + message + "'");
    };
    channel.basicConsume(queueName, true, deliverCallback, consumerTag -> { });
  }
}

RPC

public class RPCServer {

    private static final String RPC_QUEUE_NAME = "rpc_queue";

    private static int fib(int n) {
        if (n == 0) return 0;
        if (n == 1) return 1;
        return fib(n - 1) + fib(n - 2);
    }

    public static void main(String[] argv) throws Exception {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");

        try (Connection connection = factory.newConnection();
             Channel channel = connection.createChannel()) {
            channel.queueDeclare(RPC_QUEUE_NAME, false, false, false, null);
            channel.queuePurge(RPC_QUEUE_NAME);

            channel.basicQos(1);

            System.out.println(" [x] Awaiting RPC requests");

            Object monitor = new Object();
            DeliverCallback deliverCallback = (consumerTag, delivery) -> {
                AMQP.BasicProperties replyProps = new AMQP.BasicProperties
                        .Builder()
                        .correlationId(delivery.getProperties().getCorrelationId())
                        .build();

                String response = "";

                try {
                    String message = new String(delivery.getBody(), "UTF-8");
                    int n = Integer.parseInt(message);

                    System.out.println(" [.] fib(" + message + ")");
                    response += fib(n);
                } catch (RuntimeException e) {
                    System.out.println(" [.] " + e.toString());
                } finally {
                    channel.basicPublish("", delivery.getProperties().getReplyTo(), replyProps, response.getBytes("UTF-8"));
                    channel.basicAck(delivery.getEnvelope().getDeliveryTag(), false);
                    // RabbitMq consumer worker thread notifies the RPC server owner thread
                    synchronized (monitor) {
                        monitor.notify();
                    }
                }
            };

            channel.basicConsume(RPC_QUEUE_NAME, false, deliverCallback, (consumerTag -> { }));
            // Wait and be prepared to consume the message from RPC client.
            while (true) {
                synchronized (monitor) {
                    try {
                        monitor.wait();
                    } catch (InterruptedException e) {
                        e.printStackTrace();
                    }
                }
            }
        }
    }
}

public class RPCClient implements AutoCloseable {

    private Connection connection;
    private Channel channel;
    private String requestQueueName = "rpc_queue";

    public RPCClient() throws IOException, TimeoutException {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");

        connection = factory.newConnection();
        channel = connection.createChannel();
    }

    public static void main(String[] argv) {
        try (RPCClient fibonacciRpc = new RPCClient()) {
            for (int i = 0; i < 32; i++) {
                String i_str = Integer.toString(i);
                System.out.println(" [x] Requesting fib(" + i_str + ")");
                String response = fibonacciRpc.call(i_str);
                System.out.println(" [.] Got '" + response + "'");
            }
        } catch (IOException | TimeoutException | InterruptedException e) {
            e.printStackTrace();
        }
    }

    public String call(String message) throws IOException, InterruptedException {
        final String corrId = UUID.randomUUID().toString();

        String replyQueueName = channel.queueDeclare().getQueue();
        AMQP.BasicProperties props = new AMQP.BasicProperties
                .Builder()
                .correlationId(corrId)
                .replyTo(replyQueueName)
                .build();

        channel.basicPublish("", requestQueueName, props, message.getBytes("UTF-8"));

        final BlockingQueue<String> response = new ArrayBlockingQueue<>(1);

        String ctag = channel.basicConsume(replyQueueName, true, (consumerTag, delivery) -> {
            if (delivery.getProperties().getCorrelationId().equals(corrId)) {
                response.offer(new String(delivery.getBody(), "UTF-8"));
            }
        }, consumerTag -> {
        });

        String result = response.take();
        channel.basicCancel(ctag);
        return result;
    }

    public void close() throws IOException {
        connection.close();
    }
}

三种类型交换器 Fanout,Direct,Topic

fanout：不处理路由键。你只需要简单的将队列绑定到交换机上。一个发送到交换机的消息都会被转发到与该交换机绑定的所有队列上。很像子网广播，每台子网内的主机都获得了一份复制的消息。Fanout交换机转发消息是最快的。

direct：处理路由键。需要将一个队列绑定到交换机上，要求该消息与一个特定的路由键完全匹配。这是一个完整的匹配。如果一个队列绑定到该交换机上要求路由键 “test”，则只有被标记为“test”的消息才被转发，不会转发test.aaa，也不会转发dog.123，只会转发test。

topic：将路由键和某模式进行匹配。此时队列需要绑定要一个模式上。符号“#”匹配一个或多个词，符号“*”匹配不多不少一个词。因此“audit.#”能够匹配到“audit.irs.corporate”，但是“audit.*” 只会匹配到“audit.irs”。

关注公众号，精彩继续
